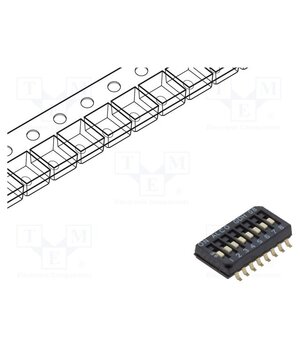

1-1571983-1 Switch: DIP-SWITCH; Poles number: 8; ON-OFF; 0.1A/50VDC; Pos: 2; SMT

• Operating temperature — -30°C…85°C
• Poles number — 8
• Max. contact resistance — 100mΩ
• Contacts pitch — 1.27mm
• Electrical life — 1kcysles
• Min. insulation resistance — 100MΩ
• Illumination — none
• Switching method — ON-OFF
• Kind of package — tape
• Leads — for PCB
• Switch of type — DIP-switch
• Terminal pitch — 1.27mm
• —
• Mounting — SMT
• —
• Stable positions number — 2
• —
• Contact plating — nickel plated
• Body colour — black
• —
• —
• —
• Contacts configuration — SPST
• Contact material — copper alloy
• Kind of package — reel
• Flammability Rating — UL94V-0
• Manufacturer — TE Connectivity
• Dimensions — 11.28x6.2x2.21mm
• DC contacts rating @R — 0.1A / 50V DC
• —
