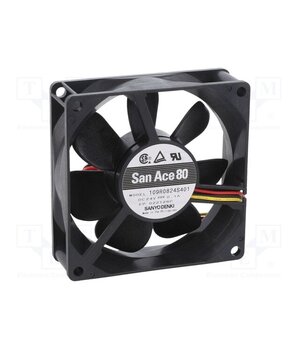

109R0824S401 Fan: DC; axial; 24VDC; 80x80x25mm; 72m3/h; 34dBA; ball; 3400rpm

• Operating voltage — 12V…27.6V
• Supply voltage — 24V
• Operating temperature — -20°C…70°C
• Supply voltage AC — 24V AC
• Fan efficiency — 72m³/h
• Noise level — 34dBA
• Power consumption — 2.4W
• Supply voltage DC — 24V DC
• Operating voltage DC — 12V DC…27.6V DC
• Current rating — 100mA
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• Enclosure material — plastic
• —
• —
• —
• Rotational rate/speed — 3400rpm
• Flammability Rating — UL94V-1
• —
• Kind of Bearing — ball
• Leads — leads x3
• Fan dimensions — 80×80×25mm
• —
• Additional functions — reverse polarity protection
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
• —
