📡 UT25CL Cable Locator

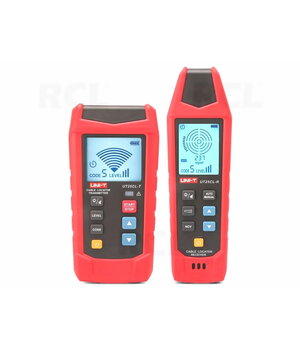

The UT25CL is a professional cable locator designed for tracing wires and cables, identifying interruptions and short circuits both in walls and underground. The device comprises a transmitter and a receiver, enabling precise localization of electrical network elements.

🔧 Technical Specifications

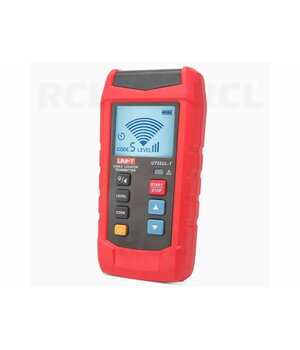

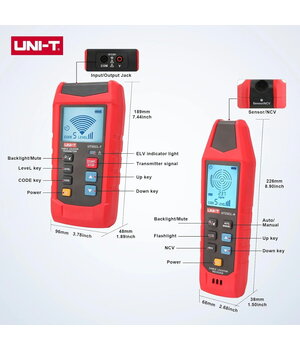

📤 Transmitter (UT25CL-T)

• Output Frequency: 33 kHz
• Voltage Range: AC/DC 8–480 V (50/60 Hz)
• Display: Segment LCD (TN, translucent)
• Adjustable Signal Level: 9 levels
• Code Values: 0–7
• ELV LED Indicator: Activates above 25 V

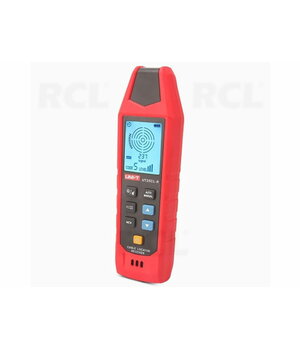

📥 Receiver (UT25CL-R)

• Receiving Frequency: 33 kHz
• Tracing Depth:
  • Unipolar Mode: up to 2.5 m
  • Bipolar Mode: up to 0.5 m
• NCV Voltage Range: 80–1000 V (50/60 Hz)
• Voltage Detection Depth: up to 0.4 m
• Display: Segment LCD (TN, translucent)
• Adjustable Sensitivity: 3 levels

⚙️ General Features

• IP Rating: IP54
• Overvoltage Category: CAT III 480 V
• Certifications: CE, RoHS
• Additional Functions: Flashlight, backlight, auto power-off

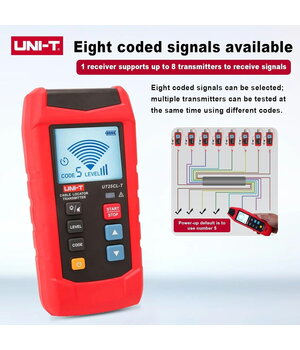

• Support: Up to 8 transmitters simultaneously

🧰 Package Contents

• UT25CL-T Transmitter
• UT25CL-R Receiver
• Test leads with alligator clips
• AC polarized plug
• 6 x 1.5 V AA batteries
• 6 x 1.5 V AAA batteries

🏗️ Applications

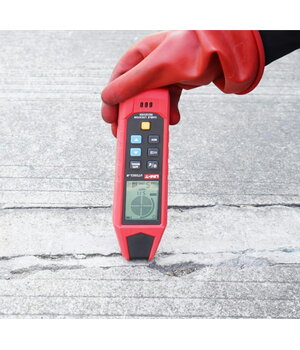

• Tracing wires in walls and underground
• Identifying interruptions and short circuits

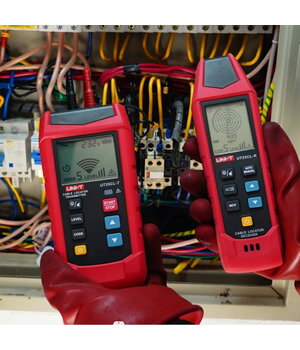

• Locating fuses and RCDs
• Tracing metal pipes and heating systems
• NCV function for non-contact voltage detection

Manufacturer's Page: UNI-T UT25CL
