Multifunction meter AC 50-300V/100A, 1999kWh, 0-30kW, DIN rail
Code ATSE03- Weight 248.00g
E-shop price: 26,50 €
| Amount: | 2+ | 4+ |
| Price: | 24,11 | 21,53 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
Wide viewing angle LCD screen: display voltage / current / active power / electricity consumption + white illumination
Non-contact, safer operation
Integrated CT wiring without screws prevents poor contact and heat
Excellent quality PC material, chemical resistant, high temperature resistant and non-flammable
Plug and play, simple and effective, with standard connectors to prevent mis-connection or short-circuiting
- Backlight control: Press the button to turn the backlight on or off
- Clear the measurement data: long press the button (more than 3 seconds) until the indicator flashes, short press the button again
- Storage of measurement data: the data is saved when the power is turned off
Features:
Color: white
Material: PC
Voltage measurement range: AC50-300V±1％
Current measurement range: 0-100A±1%
Power measurement range: 0-30kW±1%
Energy consumption measurement range: 0-1999kWh±1％

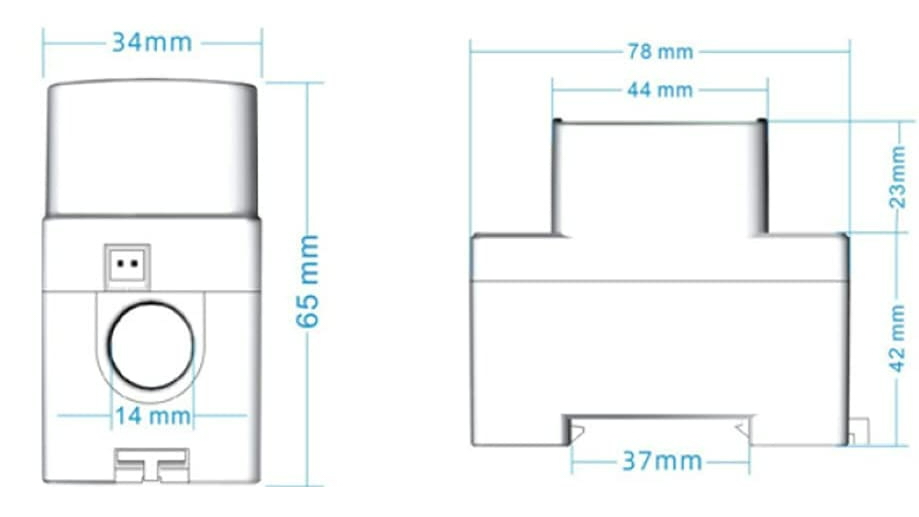

Size: 78x65x37mm
