SOCKET Micro USB Female 5pin, SMT, 180 degree
Code CLI8301- Weight 1.00g
E-shop price: 0,45 €
| Amount: | 10+ | 20+ |
| Price: | 0,39 | 0,2776 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (22) | |
| Shop in Vilnius | Item available (15) | |
| Shop in Kaunas | Item available (13) | |
Item description

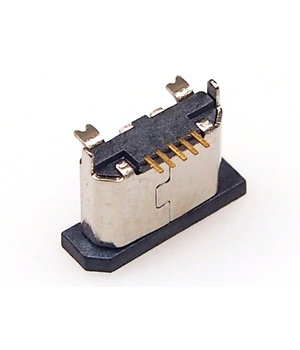

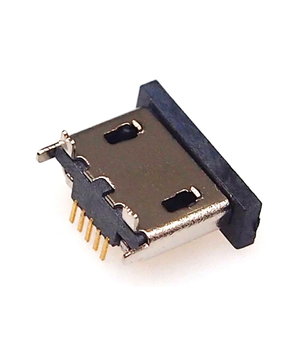

Micro USB 5P B Type Female Vertical SMT
- Current Rating: 1A Max
- Voltage Rating: 30V DC
- Withstanding Voltage: 500V(ac) For 1min
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000MΩ Min
- Total Mating Force: 3.57kgf Max
