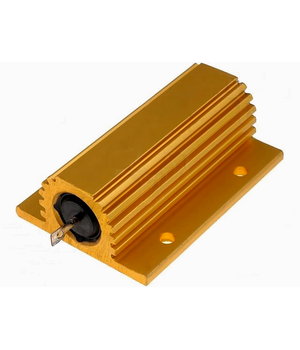

WIREWOUND RESISTOR 0.1R 100W with radiator
Code R0010R9- Weight 100.00g
E-shop price: 11,56 €
| Amount: | 3+ | 5+ |
| Price: | 10,86 | 10,75 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item is not available (0) | |
Description
Resistor type: wirewound with heat sink
Mounting: screwed
Maximum operating voltage: 1,9kV
Housing dimensions: 65,5 x 47,5 x 26mm
Operating temperature: -55...250°C
Temperature coefficient: 50ppm/°C
Features require an additional cooling radiator
Wiring: solderable
Mounting hole pitch: 37 x 35mm
Number of mounting holes: 4
Power without radiator: 50W
Recommended radiator: thickness 3mm, surface area of 99500 mm2
