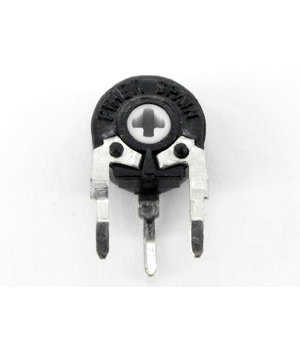

TRIMMER 500KΩ vertical, 0.1W, ±20%, L=5x5mm, Piher RDXXXV5.jpg

TRIMMER 500KΩ vertical, 0.1W, ±20%, L=5x5mm, Piher

Code RD550V5
  • Manufacturer PIHER
  • Weight 0.20g

E-shop price: 0,60

Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 1pcs.
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item is not available (0)

Description

Drawing Datasheet

Potentiometer series PT6LH
Potentiometer standard: 6mm
Mechanical rotation angle: 235 ±5°
Torque: 0,2...2Ncm
Operating temperature: -25...70°C
Lead pitch: 5x5mm
Wire track material: carbon
Electrical rotation angle: 220 ±20°
Housing dimensions: Ø6,3x3,3mm

Specification
