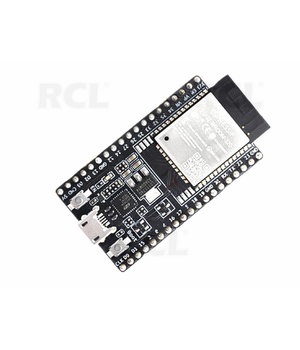

ESP-WROOM-32D ESP32-DevKitC development board WIFI+Bluetooth IoT NodeMCU-32

Code ABESP09
  • Weight 13.00g

E-shop price: 14,50

Amount: 3+ 5+
Price: 13,20 12,27
15,93 14,00
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (6)
Shop in Vilnius Item available (3)
Shop in Kaunas Item available (2)

Item description

ESP-WROOM-32 module is a universal WiFi-BT-BLE MCU module with powerful functions and wide applications. It can be used in low-power sensor networks and high-demand tasks, such as voice coding, audio streaming and MP3 decoding. The core of this module is ESP32 chip, which is scalable and adaptive. Two CPU cores can be controlled or powered on separately. The adjustable range of clock frequency is from 80 MHz to 240 MHz. Users can cut off CPU power and use low-power coprocessors to continuously monitor the state changes of peripherals or whether some analog quantities exceed the threshold. ESP-WROOM-32 module also integrates a wealth of peripherals, including capacitive touch sensor, Hall sensor, low noise sensor amplifier, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S and I2C. ESP-WROOM-32 module is hereinafter referred to as ESP32.

ESP-32 integrates traditional Bluetooth, low-power Bluetooth and Wi-Fi, and has a wide range of applications: Wi-Fi supports a wide range of communication connections, but also supports direct Internet connection through routers; Bluetooth allows users to connect to mobile phones or broadcast BLE Beacon for signal detection. The sleep current of ESP32 chip is less than 5uA, which makes it suitable for wearable electronic devices powered by batteries. The data transmission rate supported by ESP-32 is up to 150 Mbps. After power amplifier, the output power can reach 22 dBm, and ZUI wireless communication can be realized in a wide range. Therefore, the chip has the industry's leading technical specifications, high integration, wireless transmission distance, power consumption and network connectivity ZUI performance. ESP3 2's operating system is free RTOS with LWIP, and TLS 1.2 with hardware acceleration function is built-in. The chip also supports OTA encryption upgrades, and developers can continue to upgrade after the product is released.

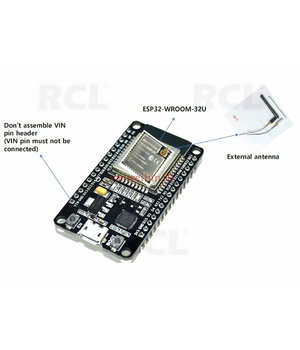

ESP32-DevKitC is an entry-level ESP32 development board. The on-board ESP32 pins are
pinned for easy connection and use. Can be used to evaluate ESP-WROOM-32 modules
and ESP32-D0WD chips.

Flash / PSRAM: 4 MB flash

Interface: I/O, USB

UI: button, LED
