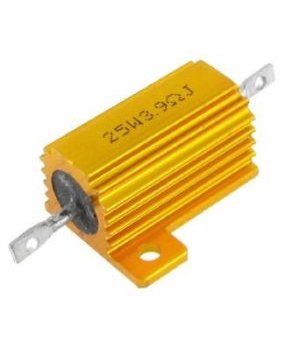

RESISTOR WIREWOUND 0.22R 25W ±5%, 27.3x28x14.6mm, with heatsink
Code R0022R2- Weight 15.00g
E-shop price: 2,95 €
| Amount: | 5+ | 10+ |
| Price: | 2,71 | 2,68 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description

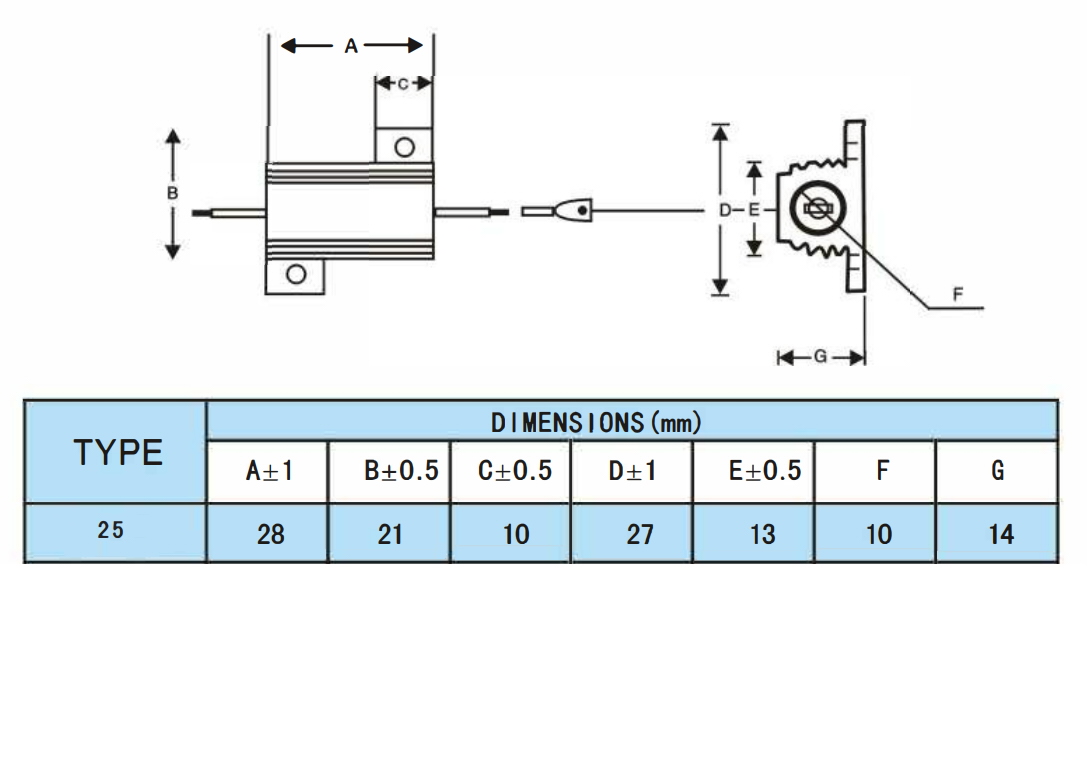

Wire resistor with radiator Maximum operating voltage: 550 V Dielectric resistance: 2000VAC / 1min Power without radiator: 9 W An additional radiator is required to dissipate the thermal power Temperature coefficient: 50ppm/°C Wires: for soldering Pitch of mounting holes: 18.6x20 mm
