Thermal relay - Thermal protection 10A 80°C disconnect / 65°C connect RLTLxxL.jpg

Thermal relay - Thermal protection 10A 80°C disconnect / 65°C connect

Code RLTL08L
  • Weight 5.00g

E-shop price: 1,95

Amount: 3+ 6+
Price: 1,68 0,71
1,30
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (5)
Shop in Vilnius Item available (4)
Shop in Kaunas Item available (4)

Item description

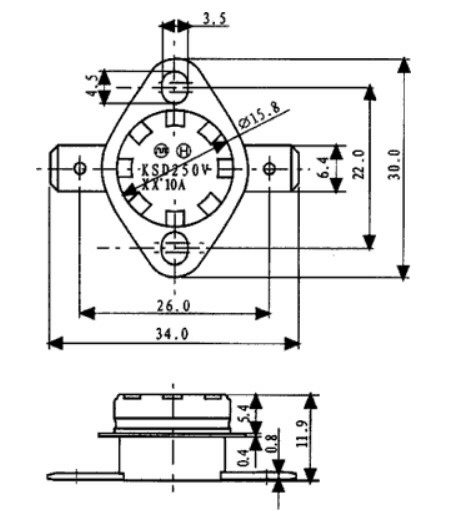

Drawing

A bimetallic thermostat is designed to switch an electrical circuit at the appropriate temperature. The thermostat contacts are disconnected when the working temperature is reached. When the temperature drops, the contacts are reconnected.
Voltage limit : 250 VAC
Permissible current : up to 10 A
Terminals : 6,3 mm
Contact disconnects : at 80 ± 5 °C
Contact reconnects : at 65 ± 5 °C
Contact : NC (normally connected)
