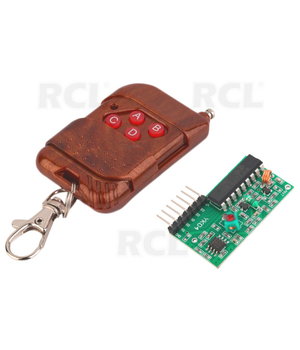

Bevielio ryšio 4kan. modulis su pulteliu 315Mhz IC2262/2272 12V DC

Kodas ADVM06
  • Svoris bruto 26.00g

Eshop kaina: 6,60 €

Kiekis: 4+ 8+
Kaina: 6,07 6,01
Min. užsakymas: 1 Kartotinumas: 1

Kiekis

Prekės buvimo vietos:
Centrinis sandėlis Kaune Prekę turime (7)
Parduotuvė Vilniuje Nr. 1 Prekę turime (2)
Parduotuvė Kaune Nr. 1 Prekę turime (4)

Prekės aprašymas

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of.
Press the buttons transmit signals, the corresponding data bit is output high.
Specifications:
Remote control
Operating voltage: DC12V
Operating Current: 10mA @ 12V
Radiated power: 10mw @ 12V
Modulation mode: ASK (Amplitude Modulation)
Transmitting frequency: 315MHZ
Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)
Encoder types: fixed code
With decoding receiver board
The operating voltage DC5V, receiver sensitivity is-98db.
Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND.
VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
Size: 6.62241mm
