MATUOKLIS-MODULIS induktyvumui ir talpai, didelio tikslumo LC100-A
Kodas ATLC01- Svoris bruto 140.00g
Eshop kaina: 25,90 €
| Kiekis: | 3+ | 5+ |
| Kaina: | 25,12 | 24,86 |
| Prekės buvimo vietos: | ||
|---|---|---|
| Biuras/Centrinis sandėlis Kaune | Prekę turime (5) | |
| Internetinių užsakymų atsiėmimo punktas Vilniuje Nr. 1 | Prekę turime (2) | |
| Internetinių užsakymų atsiėmimo punktas Kaune Nr. 1 | Prekę turime (2) | |
Prekės aprašymas

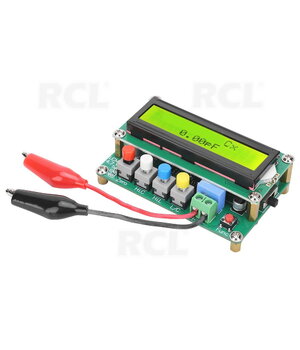

LC100-A type is a full-featured added 1uF-100mF electrolytic capacitor test function, in addition to the basic three stalls, all the stalls are autoranging.
This product has an absolute advantage in the small value of testing with respect to the sales of finished products on the market inductance capacitance meter (such as 6243 series) is the accuracy and minimum resolution, and flexible online calibration can always maintain measurement accuracy. The instrument does not use any potentiometer adjustment, calibration parameters are completely stored in the microcontroller FLASH internal power-down is not lost, than the potentiometer calibration methods to accurately.
LC100-A basic technical indicators:
Measurement accuracy: 1%
Capacitance measuring range: 0.01pF-10uF
Minimum resolution: 0.01pF
Inductance Range: 0.001uH-100mH
Minimum resolution: 0.001uH
Large inductance measurement range: 0.001mH-100H
Minimum resolution: 0.001mH
Large capacitance measuring range: 1uF-100mF
Minimum resolution: 0.01uF
Test frequency: capacitors, inductors file about 500kHz, large inductance of about 500Hz
Can display current test frequency value
Effective display digits: 4
Display: 1602 LCD
Power supply: miniUSB interface to take power or 5V power supply
SMD soldering components, stable and reliable!
