GARSIAKALBIS ŽD W300 8Ω, Visaton
Kodas GAVSZW300/8- Gam. ženkl. VISATON
- ID kodas 9069
- Svoris bruto 3395.00g
Eshop kaina: 98,90 €
| Kiekis: | 2+ | 4+ |
| Kaina: | 94,94 | 86,85 |
| Prekės buvimo vietos: | ||
|---|---|---|
| Biuras/Centrinis sandėlis Kaune, Gaižiūnų 5A | Prekės neturime (0) | |
| Parduotuvė Vilniuje, Ukmergės g. 222 | Prekę turime (1) | |
| Parduotuvė Kaune, Savanorių pr. 241 | Prekės neturime (0) | |
Prekės aprašymas

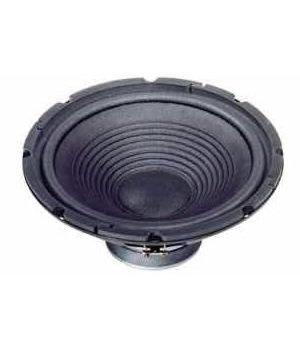

30 cm (12") woofer with air-dried cone and pressure vented pole piece. Can be fitted at front or rear. Excellent value for money coupled with very good power-handling capabilities. Particularly suitable as a replacement for HiFi speakers.
Technical Data:
Rated power 120 W
Frequency response fu–2500 Hz
Excursion limit +/-14 mm
Resonance frequency fs 32 Hz
Magnetic induction 0.95 T
Magnetic flux 1250 µWb
Height of front pole-plate 8 mm
Voice coil diameter 50 mm
Height of winding 18.5 mm
Cutout diameter 280 mm
D.C. resistance Rdc 6.6 Ohm
Mechanical Q factor Qms 2.68
Electrical Q factor Qes 0.54
Total Q factor Qts 0.45
Equivalent volume Vas 190 l
Effective piston area Sd 490 cm²
Dynamically moved mass Mms 43 g
Force factor Bxl 9.4 Tm
Inductance of the voice coil 1.8 mH
