KONDENSATORIUS ELEKTROLITINIS 22000uF 63V Glue On 4 pin, Mundorf
Kodas KE22000/6M- Gam. ženkl. MUNDORF
- Svoris bruto 112.00g
Eshop kaina: 49,90 €
| Kiekis: | 3+ | 5+ |
| Kaina: | 46,41 | 44,21 |
| Prekės buvimo vietos: | ||
|---|---|---|
| Biuras/Centrinis sandėlis Kaune, Gaižiūnų 5A | Prekės neturime (0) | |
| Parduotuvė Vilniuje, Ukmergės g. 222 | Prekės neturime (0) | |
| Parduotuvė Kaune, Savanorių pr. 241 | Prekės neturime (0) | |
Prekės aprašymas
The MLytic® AG + · Audio Grade Power Cap series is especially engineered for use in small but excellent power and pre amplifiers. Due to their advantages over 2 pin electrolytics they are first choice for ambitious audio engineers.
MLGO+ · glue-on capacitors offer nonmagnetic. straight. tinned copper wires Ø 1.2mm ? AWG17. Additionally they own a vibration-reducing. traction-relieving. self-adhesive MPSA · Mounting Pad.
Please find recommendable accessory such as Mounting Pads. MCNV · Mounting Clamps and fitting Solder
The MLytic® AG+Audio Grade Power Cap Serie series offers all benefits of Mundorf's unique MLytic® technology plus the following features:
Supply availability
Typically immediately ex stock
for all types listed below
Versatile applicable
RoHS-compliant · lead free
REACH compliant
Finest UL-listed ingredients only
Sectional specification DIN 41332 · IEC 60384-4
Climatic category IEC 60068 40/105/56
Indication of origin
Made in Germany with greatest care

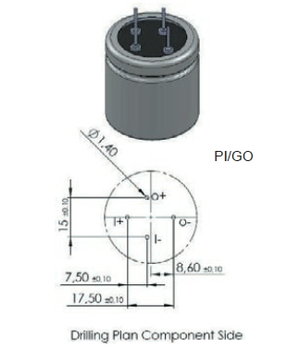

4-Pin Technology
Seperated in- and outputs for optimal contacting and pull-out strength. supreme pulse fidelity. no magnetic loss
exceptional filtering features
Capacitance range
470?F to 3 300 000?F
DC voltage range
16 · 25 · 35 · 40 · 50 · 63 · 80 · 100 · 160
Temperature range
-40°C/-40°F to 125°C/+255°F [16V to 63V]
-25°C/-13°F to 105°C/+220°F [100V to 160V]
Diverse connectors
PI · plug-in
GO · glue-on
SC · screw-terminal · clamp mounted
SB · screw-terminal · bolt mounted
Useful lifetime [UR · IR~]
3 000 hours at 125°C/255°F [16V to 63V]
8 000 hours at 105°C/220°F [16V to 160V]
16 000 hours at 85°C/185°F [16V to 160V]
Rated lifetime [UR]
1 000 hours at 125°C/255°F [16V to 63V]
2 000 hours at 105°C/220°F [16V to 160V]
Casie diameter [mm]
35 · 75 · 90
Case heights [mm]
Customized from von 30 to 230
[typically in 5mm steps]
Casie diameter [inch]
1.38 · 2.95 · 3.54
Case heights [inch]
Customized from von 1.38 to 3.94
[typically in 0.2inch steps]
Insulation
Lead free PVC sleeve with end disk
voltage proof ? 2500 AC
Leakage current [IL
? 0.008 * CR[µF]*UR + 6µA after 5 minutes at UR
[ESL]
20nH equivalent series inductance
Maximal reverse voltage
2V
