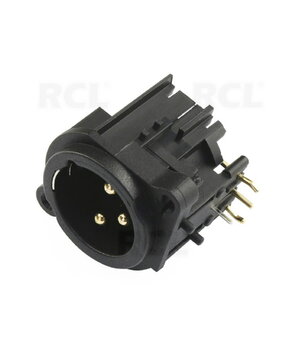

MICROPHONE SOCKET XLR 3pin professional, soldered
Code CLI455L- Weight 7.00g
E-shop price: 1,50 €
| Amount: | 5+ | 10+ |
| Price: | 1,29 | 0,90 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (5) | |
Item description
The XLR connector is a style of electrical connector, primarily found on professional audio, video, and stage lighting equipment. This is a Three-pin XLR PCB mount connector(XLR3). Three-pin XLR connectors are used to interconnect powered speakers with line-level signals. This use is commonly seen in PA system applications and seems to be growing more common.
Features:
Compact size
Highest packing density
Plastic housing
Polished contact areas and gold plating
Housing flammability UL94 V-0
Contact Resistance: ≤0.2 mΩ
Insulation Resistance: ≥100 MΩ
Withstand Voltage: 1500V, AC/min
Terminal Strength: ≥30 N
Rated Load: 250V DC 1.0A
Temperature: -30 ~ +80 ℃
Life: 5000 Time
