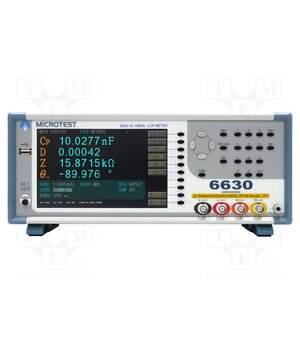

6630-10 LCR meter; Meas.accur: ±0.05%; LCD TFT 7"; 6 digits; 800x480

• Supply voltage — 100…240
• Supply voltage AC — 100…240
• Operating temperature — 10…40
• Supply voltage DC — 100…240
• Measurement frequency — 10…10000000
• Measurement — conductance
• —
• —
• Measuring instrument features — auto component classification
• Interface — LAN
• Standard equipment — mains cable
• —
• Measurement — equivalent series resistance (ESR)
• Measurement — DCR
• Measuring instrument features — 50 sets setting memory
• —
• Measurement — capacitance
• Kind of display used — LCD TFT 7"
• Interface — USB Host
• Interface — USB device
• —
• —
• Interface — HANDLER I/O
• —
• Measuring instrument features — cable compensation 0/ 0,5/ 1/ 2 m
• Measurement — phase angle θ
• —
• Measuring instrument features — ALC function- Automatic Level Control
• Measurement — reactance
• Measurement — dissipation factor D
• —
• Measuring instrument features — Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV)
• Measurement — resistance
• —
• Measurement — inductance
• Measurement — admittance
• Measuring instrument features — parallel or serial measurement
• —
• —
• Measurement — impedance
• Measuring instrument features — open circuit/short circuit/load correction function
• Interface — GPIB
• Interface — RS232
• —
• Display parameters — 6 digits
• Type of meter — LCR meter
• Measurement — susceptance
• —
• Measurement — relative permeability
• Display resolution — 800x480
• —
• —
• —
• Measuring instrument features — displays up to 4 component parameters
• Measurement — relative permittivity
• —
• —
• —
• Measurement accuracy — ±0.05%
• Dimensions — 336x147x340mm
• —
• Measuring instrument features — BIN comparator function
• Standard equipment — measuring probe FX-000C19
• Measuring instrument features — Test Signal Current Level 200μA-20mArms (resolution: 10μA)
• Measurement — quality factor Q
