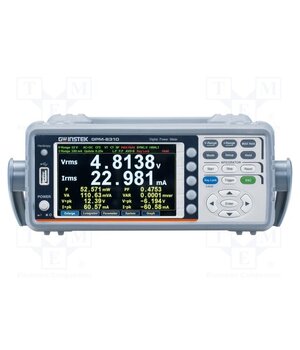

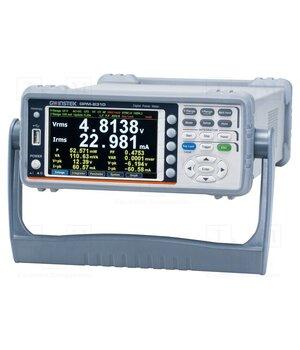

GPM-8310/DA4 Meter: power; LCD TFT 5"; True RMS; 30A; 600V; 100mHz÷100kHz; 30VA

• Supply voltage AC — 100…240
• Power consumption — 30
• Supply voltage DC — 100…240
• Maximum current — 30A
• Interface — LAN
• Standard equipment — mains cable
• Standard equipment — cable GTL-214
• Max. voltage — 600V
• Measurement — harmonic content factor
• Kind of display used — LCD TFT 5"
• Measurement — frequency
• Measurement — DC current
• Type of meter — power
• Measurement — AC voltage
• Dimensions — 268x107x379mm
• —
• True effective value measurement — True RMS
• Measuring instrument features — possibility of displaying many readouts on single screen
• —
• —
• Interface — EXT I/O
• Measurement — apparent power
• Manufacturer — GW INSTEK
• Standard equipment — user's manual
• Measurement — power factor
• Measurement — angle
• —
• —
• Measurement — active power
• —
• Band — 100mHz...100kHz
• Standard equipment — cable GTL-209
• Interface — RS232
• —
• Measurement — reactive power
• Standard equipment — cable GTL-212
• Max. voltage — 0.6kV
• —
• Conform to the norm — EN 61010
• Measurement — crest factor
• Interface — USB
• —
• Conform to the norm — CAT II 600V
• Measurement — AC current
• Measuring instrument features — harmonics analyser
• Measurement — DC voltage
