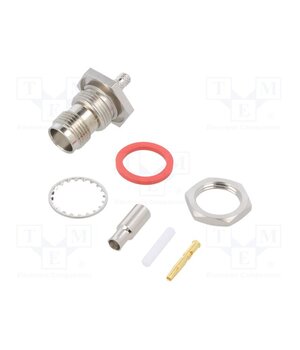

031-2318-RFX Connector: TNC; socket; female; straight; 50Ω; crimped; gold-plated

• Operating temperature — -40°C…85°C
• Mechanical durability — 500cysles
• Max. frequency — 3GHz
• Kind of cable — Belden 84316
• Kind of cable — RG174
• —
• Kind of cable — Leoni DACAR 462
• Kind of cable — Leoni DACAR 462-2
• Mechanical mounting — front side nut
• Contact material — phosphor bronze
• Kind of cable — Belden 83269
• Kind of cable — Belden 8216
• Connector — socket
• —
• Kind of cable — RG316
• Kind of cable — Belden 83284
• Mechanical mounting — for panel mounting
• Kind of cable — Times RG-174LL
• Kind of cable — Times LMR-100A
• Insulator material — POM
• Body material — brass
• Type of connector — TNC
• —
• —
• —
• —
• Kind of connector — female
• Contact plating — gold-plated
• Kind of cable — Sumitomo 1.5DS-GXC-SP
• Kind of cable — Shikoku 1.5DS-QFB-TA
• Plating material — nickel
• Kind of cable — RG188
• Manufacturer — AMPHENOL RF
• Electrical mounting — crimped
• Spatial orientation — straight
• Kind of cable — Belden 7805A
