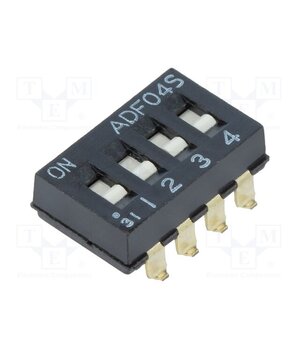

1-1825059-7 Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.1A/24VDC; Pos: 2; SMT

• Operating temperature — -30°C…85°C
• Max. contact resistance — 100mΩ
• Contacts pitch — 2.54mm
• Poles number — 4
• Illumination — none
• Switching method — ON-OFF
• Leads — for PCB
• Switch of type — DIP-switch
• Terminal pitch — 2.54mm
• Contact material — copper
• Dimensions — 12.14x7.5x3.5mm
• Button shape — rectangular
• Mounting — SMT
• —
• Stable positions number — 2
• Key button colour — white
• Contact plating — gold-plated
• DC contacts rating @R — 0.1A / 24V DC
• —
• —
• —
• Contacts configuration — SPST
• Manufacturer — TE Connectivity
• Body colour — brown
• —
• Shape — rectangular
