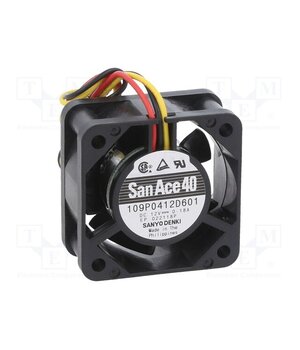

109P0412D601 Fan: DC; axial; 12VDC; 40x40x20mm; 18.6m3/h; 42dBA; ball; 11000rpm

• Operating voltage — 7V…13.8V
• Supply voltage — 12V
• Operating temperature — -20°C…60°C
• Supply voltage AC — 12V AC
• Fan efficiency — 18.6m³/h
• Noise level — 42dBA
• Power consumption — 2.16W
• Supply voltage DC — 12V DC
• Operating voltage DC — 7V DC…13.8V DC
• Current rating — 180mA
• Lead length — 320mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• Enclosure material — plastic
• —
• Flammability Rating — UL94V-1
• —
• —
• —
• Kind of Bearing — ball
• Leads — leads x3
• Fan dimensions — 40x40x20mm
• —
• —
• Additional functions — reverse polarity protection
• Rotational rate/speed — 11000rpm
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
