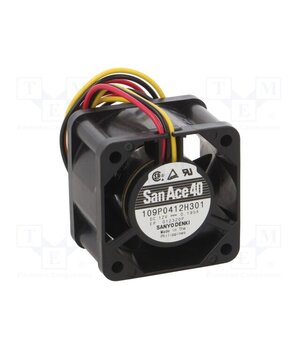

109P0412H301 Fan: DC; axial; 12VDC; 40x40x28mm; 19.2m3/h; 37dBA; ball; 8700rpm

• Operating voltage — 7V…13.8V
• Supply voltage — 12V
• Fan efficiency — 19.2m³/h
• Noise level — 37dBA
• Operating temperature — -20°C…70°C
• Supply voltage AC — 12V AC
• Power consumption — 2.34W
• Supply voltage DC — 12V DC
• Operating voltage DC — 7V DC…13.8V DC
• Current rating — 195mA
• Lead length — 320mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• —
• Enclosure material — plastic
• Flammability Rating — UL94V-1
• —
• —
• —
• —
• —
• Kind of Bearing — ball
• Rotational rate/speed — 8700rpm
• Leads — leads x3
• Additional functions — reverse polarity protection
• Additional functions — lock sensor
• —
• —
• —
• Fan dimensions — 40x40x28mm
• —
• —
• Manufacturer — SANYO DENKI
