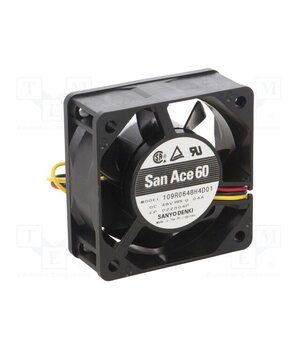

109R0648H4D01 Fan: DC; axial; 48VDC; 60x60x25mm; 31.8m3/h; 28dBA; ball; 3800rpm

• Operating voltage — 40V…53V
• Operating temperature — -20°C…70°C
• Supply voltage AC — 48V AC
• Fan efficiency — 31.8m³/h
• Noise level — 28dBA
• Power consumption — 1.92W
• Supply voltage DC — 48V DC
• Operating voltage DC — 40V DC…53V DC
• Current rating — 40mA
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• —
• —
• Enclosure material — plastic
• Rotational rate/speed — 3800rpm
• —
• Flammability Rating — UL94V-1
• —
• Kind of Bearing — ball
• Leads — leads x3
• Fan dimensions — 60×60×25mm
• Additional functions — reverse polarity protection
• —
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
