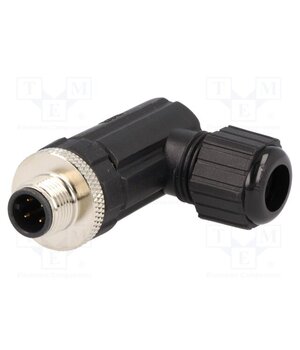

M12A-04BMMB-SR7001 Connector: M12; plug; PIN: 4; male; M12 ALTW; 250V; angled 90°; 4A

• Rated voltage — 250V
• Number of pins — 4
• Current rating — 4A
• —
• —
• Mechanical mounting — for cable
• Manufacturer — AMPHENOL LTW
• —
• IP rating — IP68
• IP rating — IP67
• Type of connector — M12
• Locking system — threaded joint
• —
• Kind of connector — male
• Locking system — external thread
• Body material — plastic
• Spatial orientation — angled 90°
• Contact plating — gold-plated
• Electrical mounting — screw terminal
• Wire size — 22AWG...20AWG
• Cable external diameter — 4.5...6.5mm
• —
• Polarisation — A code - DeviceNet / CANopen
• Connector — plug
• —
• Connector variant — with metal nut
