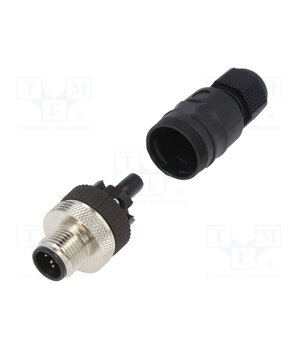

1351 Connector: M12; plug; PIN: 5; male; 30V; straight; IP67; for cable

• Rated voltage — 30V
• Number of pins — 5
• Operating temperature — -25°C…90°C
• Current rating — 4A
• —
• —
• Mechanical mounting — for cable
• IP rating — IP67
• Type of connector — M12
• Locking system — threaded joint
• —
• Kind of connector — male
• Manufacturer — LUTRONIC
• Locking system — external thread
• Connector variant — unshielded
• Cable external diameter — 3...6.5mm
• Wire size — 20AWG
• Contact plating — gold-plated
• Electrical mounting — screw terminal
• —
• Polarisation — A code - DeviceNet / CANopen
• Connector — plug
• Spatial orientation — straight
• —
