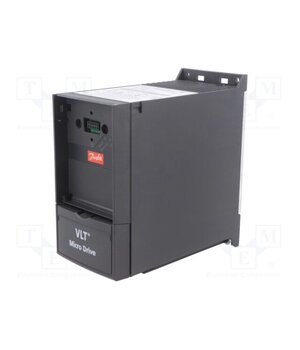

FC-051PK75S2E20H3XXCXXXSXXX Automation module: vector inverter; Max motor power: 0.75kW

• Supply voltage — 200V…240V
• Operating temperature — 0°C…50°C
• Supply voltage AC — 200V AC…240V AC
• Supply voltage DC — 200V DC…240V DC
• Current rating — 4.2A
• Max motor power — 750W
• Output frequency — 0Hz…400Hz
• Number of analog inputs — 1
• Number of analog outputs — 2
• Manufacturer — DANFOSS
• —
• Body dimensions — 150x70x148mm
• —
• —
• Inverter output voltage — 3 x 230V AC
• Mounting — for DIN rail mounting
• Protection — short circuit protection SCP
• Protection — anti-overload OPP
• The programming method — PC
• —
• —
• —
• Type of module — vector inverter
• —
• Number of inputs — 6
• Mounting — for wall mounting
• The programming method — keypad
• Type of automation module — vector inverter
• —
• Electrical connection — screw terminals
• —
• —
• —
