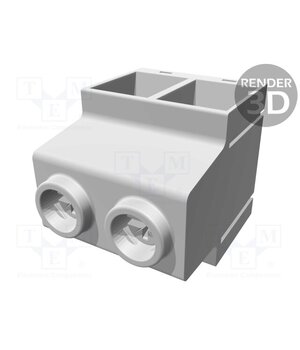

14020227402000 Connector: PCB terminal block; terminal; har-flexicon®; 135A

• Rated voltage — 600V
• Contacts pitch — 15mm
• Operating temperature — -40°C…110°C
• Current rating — 135A
• Length — 30mm
• Number of pins — 2
• Depth — 31mm
• —
• —
• Wire size — 20AWG...1AWG
• —
• Body material — polyamide
• Colour — black
• —
• —
• Type of pin configuration — 1x2
• —
• —
• Contact plating — tinned
• —
• Spatial orientation — angled 90°
• —
• Contact material — brass
• Electrical mounting — THT
• Manufacturer — HARTING
• —
• Electrical mounting — screw terminal
• Mechanical mounting — on PCBs
• —
• Flammability Rating — UL94V-0
• Type of connector — PCB terminal block
• —
• Terminal pitch — 12.5x3.8mm
• —
• —
• Connector — terminal
• Conform to the norm — UL
