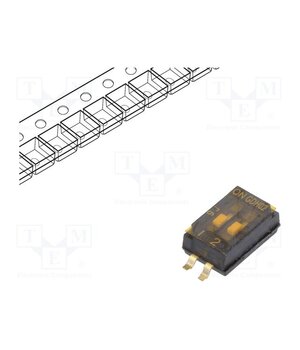

1571983-3 Switch: DIP-SWITCH; Poles number: 2; OFF-ON; 0.1A/50VDC; Pos: 2; SMT

• Max. contact resistance — 100mΩ
• Operating temperature — -30°C…85°C
• Poles number — 2
• Contacts pitch — 1.27mm
• Electrical life — 1kcysles
• Min. insulation resistance — 100MΩ
• Illumination — none
• Leads — for PCB
• Switch of type — DIP-switch
• Terminal pitch — 1.27mm
• —
• Mounting — SMT
• —
• Stable positions number — 2
• —
• Contact plating — gold-plated
• —
• —
• —
• Contacts configuration — SPST
• Contact material — copper alloy
• —
• Flammability Rating — UL94V-0
• Manufacturer — TE Connectivity
• DC contacts rating @R — 0.1A / 50V DC
• —
