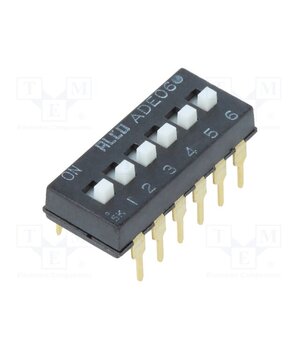

1825360-4 Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.1A/24VDC; Pos: 2; THT

• Max. contact resistance — 50mΩ
• Operating temperature — -30°C…85°C
• Poles number — 6
• Contacts pitch — 2.54mm
• Illumination — none
• Switching method — ON-OFF
• Leads — for PCB
• Switch of type — DIP-switch
• Terminal pitch — 2.54mm
• Contact material — copper
• Button shape — rectangular
• —
• Stable positions number — 2
• Body colour — black
• Key button colour — white
• —
• Contact plating — gold-plated
• DC contacts rating @R — 0.1A / 24V DC
• —
• Contacts configuration — SPST
• Manufacturer — TE Connectivity
• Dimensions — 17.17x7.5x3.5mm
• —
• —
• Mounting — through-hole technology
• Shape — rectangular
