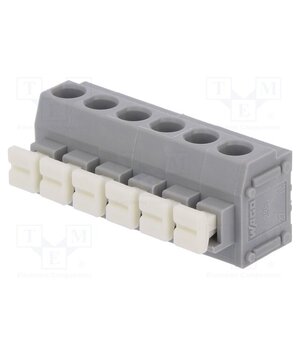

235-406/331-000 Connector: PCB terminal block; terminal; 17.5A; 250V; PIN: 6; grey

• Rated voltage — 250V
• Contacts pitch — 5mm
• Operating temperature — -60°C…105°C
• Current rating — 17.5A
• Number of pins — 6
• Depth — 12.5mm
• —
• Electrical mounting — spring clamp
• Wire size — 20AWG...14AWG
• Contact material — copper
• —
• —
• —
• Type of pin configuration — 1x6
• Body material — polyamide 66
• —
• Contact plating — tinned
• Spatial orientation — angled 90°
• —
• —
• Colour — grey
• —
• Electrical mounting — THT
• Manufacturer — WAGO
• Connector variant — with push button
• Mechanical mounting — on PCBs
• Flammability Rating — UL94V-0
• Type of connector — PCB terminal block
• —
• Connector — terminal
• Conform to the norm — UL
• —
