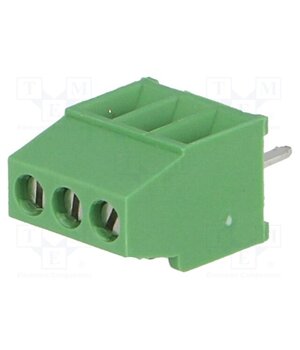

282834-3 Connector: PCB terminal block; terminal; 10A; 150V; angled 90°

• Rated voltage — 150V
• Contacts pitch — 2.54mm
• Current rating — 10A
• Length — 8.08mm
• Number of pins — 3
• Depth — 6.5mm
• —
• —
• —
• Body material — polyamide 66
• Wire size — 30AWG...16AWG
• Contact plating — tinned
• Spatial orientation — angled 90°
• —
• —
• —
• Contact material — brass
• Electrical mounting — THT
• Colour — green
• Electrical mounting — screw terminal
• Mechanical mounting — on PCBs
• Type of pin configuration — 1x3
• Flammability Rating — UL94V-0
• Manufacturer — TE Connectivity
• Type of connector — PCB terminal block
• —
• —
• Electrical mounting — cage clamp
• —
• —
• Connector — terminal
• Conform to the norm — UL
