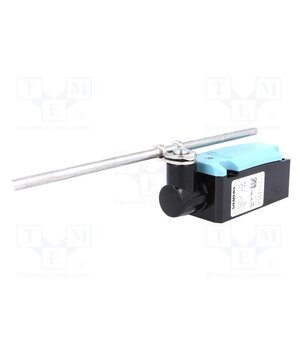

3SE5112-0CH80 Limit switch; aluminium adjustable rod, length 200mm; NO + NC

• Operating temperature — -25°C…85°C
• Contact current max. — 10A
• Number of mounting holes — 4
• —
• —
• Connection — M20 x 1,5
• Manufacturer — SIEMENS
• Switches Features — snap action contacts
• —
• Type of sensor — limit switch
• Body material — metal
• AC contacts rating @R — 3A / 240V AC
• Output configuration — NO + NC
• Switched voltage — max. 250V DC
• Kind of actuator — aluminium adjustable rod, length 200mm
• DC contacts rating @R — 3A / 24V DC
• —
• Switched voltage — max. 400V AC
• Body dimensions — 78x40x38mm
• Mounting holes pitch — 30/60mm
