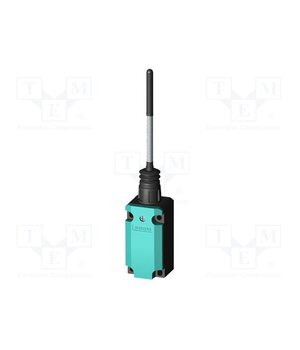

3SE5132-0CR01 Limit switch; spring length 142,5mm; NO + NC; 10A; max.400VAC

• Operating temperature — -25°C…85°C
• Contact current max. — 10A
• Number of mounting holes — 4
• —
• Connection — M20 x 1,5
• Manufacturer — SIEMENS
• Switches Features — snap action contacts
• —
• Type of sensor — limit switch
• Body material — plastic
• AC contacts rating @R — 3A / 240V AC
• IP rating — IP65
• Output configuration — NO + NC
• Switched voltage — max. 250V DC
• DC contacts rating @R — 3A / 24V DC
• Kind of actuator — spring length 142,5mm
• —
• Switched voltage — max. 400V AC
• Body dimensions — 78x40x38mm
• Mounting holes pitch — 30/60mm
