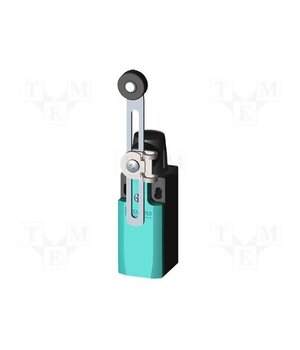

3SE5232-0HK50 Limit switch; NO + NC; 10A; max.400VAC; max.250VDC; M20 x 1,5

• Operating temperature — -25°C…85°C
• Contact current max. — 10A
• Number of mounting holes — 2
• —
• Connection — M20 x 1,5
• Manufacturer — SIEMENS
• Switches Features — snap action contacts
• Mounting holes pitch — 20...22mm
• Type of sensor — limit switch
• Body material — plastic
• AC contacts rating @R — 3A / 240V AC
• IP rating — IP65
• Output configuration — NO + NC
• Switched voltage — max. 250V DC
• DC contacts rating @R — 3A / 24V DC
• Body dimensions — 68x31x33mm
• Kind of actuator — adjustable lever R 21,5-91,5mm, plastic roller Ø19mm
• —
• —
• Switched voltage — max. 400V AC
