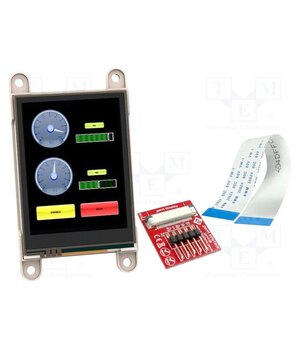

GEN4-ULCD-24DT Display: TFT; 2.4"; 240x320; 32kBRAM,192kBFLASH; 300cd/m2; FFC/FPC

• Supply voltage — 5V
• Operating temperature — -15°C…65°C
• Supply voltage AC — 5V AC
• Supply voltage DC — 5V DC
• Touchpad — resistance
• Interface — serial
• Screen size — 2.4"
• Kit contents — GEN4-IB
• —
• Display features — PWM output
• Type of display — TFT
• —
• Display features — CRC
• —
• Kit contents — manual
• Microcontroller — DIABLO16
• No. of colours — 65k
• Kind of display — graphical
• Display resolution — 240x320
• Display features — pulse output
• —
• Memory — 192kB FLASH
• —
• Interface — SPI x3
• —
• Manufacturer — 4D Systems
• Display features — quadrature input
• Dimensions — 78.4x44.8x7.4mm
• Connector pinout layout — 1x30
• —
• Kind of connector — FFC/FPC
• Interface — I2C x3
• Interface — GPIO
• Display features — microSD card reader
• Window dimensions (H x W) — 36.7x49mm
• Kit contents — 15cm 30pin FFC cable
• Display features — NeoPixel
• Memory — 32kB RAM
