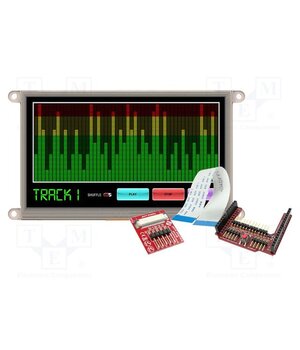

GEN4-ULCD-70D-AR Display: TFT; 7"; 800x480; 32kBRAM,192kBFLASH; 455cd/m2; FFC/FPC

• Supply voltage AC — 5V AC
• Operating temperature — -15°C…65°C
• Supply voltage DC — 5V DC
• Interface — serial
• —
• Kit contents — GEN4-IB
• —
• —
• Application - series/manufacturer — Arduino
• Display features — PWM output
• Window dimensions (H x W) — 154.08x85.92mm
• Interface — 1-wire
• Type of display — TFT
• Display features — CRC
• —
• Interface — 8bit parallel
• Kit contents — ribbon cable with adatper 5pin
• Microcontroller — DIABLO16
• No. of colours — 65k
• Kind of display — graphical
• Display features — pulse output
• Body dimensions — 187x102.1x8.3mm
• Memory — 192kB FLASH
• —
• Interface — I2C
• Display resolution — 800x480
• Manufacturer — 4D Systems
• Display features — quadrature input
• Connector pinout layout — 1x30
• Touchpad — none
• Interface — SPI
• Screen size — 7"
• —
• Kind of connector — FFC/FPC
• Interface — GPIO
• Display features — microSD card reader
• Kit contents — 15cm 30pin FFC cable
• Display features — NeoPixel
• Memory — 32kB RAM
