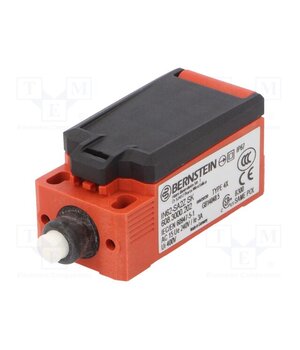

IN62-SA2Z SK Limit switch; NC x2; 5A; max.240VAC; max.24VDC; M20; IP66; -30÷75°C

• Operating temperature — -30°C…75°C
• Contact current max. — 5A
• Number of mounting holes — 2
• —
• Output configuration — NC x2
• —
• DC contacts rating @R — 1.5A / 24V DC
• Switches Features — snap action contacts
• Mounting holes pitch — 20...22mm
• Type of sensor — limit switch
• —
• Switched voltage — max. 24V DC
• Body material — plastic
• AC contacts rating @R — 1.5A / 240V AC
• Manufacturer — BERNSTEIN AG
• —
• Body dimensions — 31x62x30.3mm
• —
• Switched voltage — max. 240V AC
• Connection — M20
