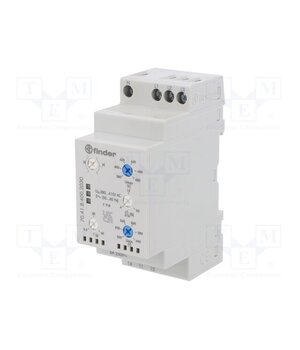

70.41.8.400.2030 Voltage monitoring relay; for DIN rail mounting; SPDT; 0.5÷60s

• Operating temperature — -20°C…60°C
• Contact actuation delay — 500ms…60s
• Controlled parameter range — 3x 380V AC...415V AC
• Controlled parameter — overvoltage
• Kind of output 1 — SPDT
• Mounting — for DIN rail mounting
• Type of automation module — voltage monitoring relay
• Manufacturer — FINDER
• Controlled parameter — undervoltage
• Type of module — voltage monitoring relay
• IP rating — IP20
• Voltage between phases (for three phase system) — 3 x 380...415V AC
• Body dimensions — 88.8x35x60.8mm
• Controlled parameter — phase sequence
• —
• Output 1 electrical parameters — 250V AC / 6A
• Controlled parameter — phase asymmetry
• Leads — screw terminals
• Controlled parameter — phase failure
• —
• —
