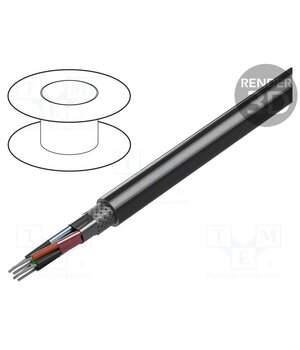

8165 060100 Wire; 5x2x24AWG; stranded; Cu; Insulation: PVC; chrome; RS232,RS422

• Rated voltage — 300V
• Operating temperature — -40°C…60°C
• Number of cores — 10
• Package contents — 30m
• Shield structure — shielded threefold
• —
• —
• —
• Kind of core — Cu
• Manufacturer — BELDEN
• Core structure — stranded
• —
• Cable application — RS422
• Conform to the norm — UL 1685
• Conform to the norm — UL 2493
• —
• —
• Shield structure — Al-PET foil
• Cable external diameter — 10.49mm
• Insulation colour — chrome
• —
• Shield structure — pairs shielded with Al-PET foil
• —
• Cable application — RS232
• —
• —
• Core diameter AWG — 24AWG
• Shield structure — tinned copper braid
• —
• —
• —
• —
• Wire insulation material — PVC
• Kind of core — tinned
• —
