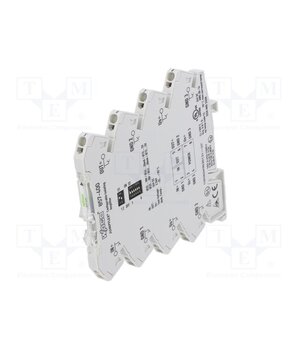

857-400 Converter: signal separator/amplifier; for DIN rail mounting

• Supply voltage — 24V
• Operating temperature — -25°C…70°C
• Supply voltage AC — 24V AC
• Supply voltage DC — 24V DC
• Kind of output 1 — 2...10mA
• Kind of output 1 — 0...5V
• Kind of input 1 — 2...10V
• Kind of input 1 — 0...5V
• Kind of output 1 — 0...10mA
• Mounting — for DIN rail mounting
• Kind of input 1 — 4...20mA
• Kind of output 1 — 1...5V
• —
• —
• Kind of input 1 — 1...5V
• Kind of output 1 — 0...20mA
• Body dimensions — 6x94x97.8mm
• IP rating — IP20
• Kind of output 1 — 2...10V
• Kind of output 1 — 0...10V
• Kind of input 1 — 0...20mA
• Conform to the norm — EN 61000-6-4
• Kind of output 1 — 4...20mA
• —
• Kind of input 1 — 0...10V
• Manufacturer — WAGO
• The programming method — DIP-SWITCH
• Conform to the norm — EN 61000-6-2
• Additional functions — inputs / outputs / power supply galvanic insulation
