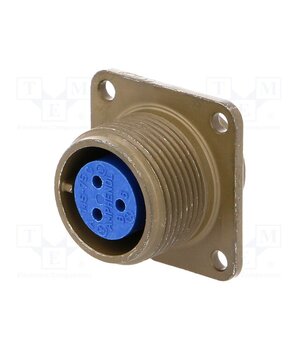

97-3102A-14S-7S Connector: circular; socket; PIN: 3; female; soldering; 97; 13A

• Rated voltage — 700V
• Number of pins — 3
• Operating temperature — -55°C…125°C
• Current rating — 13A
• Rated voltage AC — 500V AC
• Rated voltage DC — 700V DC
• —
• Contact plating — silver plated
• Connector — socket
• Type of connector — circular
• Mechanical mounting — for panel mounting
• Case — size 14S
• Locking system — threaded joint
• Mechanical mounting — flange (4 holes)
• Locking system — external thread
• —
• Manufacturer — AMPHENOL
• Enclosure material — aluminium alloy
• —
• Electrical mounting — soldering
• —
• —
• Kind of connector — female
• Colour — olive
• —
• Plating material — cadmium
• —
• —
• —
• —
• Spatial orientation — straight
