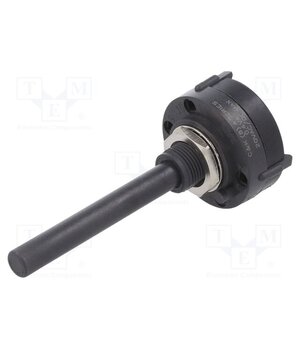

A11442MNZB Switch: rotary; Pos: 2; SPDT; 2.5A/125VAC; 0.35A/125VDC; 90°; L: 42mm

• Operating temperature — -30°C…85°C
• Poles number — 1
• Max. contact resistance — 20mΩ
• Shaft diameter — 6mm
• Electrical life — 15kcysles
• Min. insulation resistance — 10GΩ
• —
• —
• —
• —
• —
• Stable positions number — 2
• DC contacts rating @R — 0.35A / 125V DC
• —
• Contact plating — nickel plated
• —
• Fastening thread — M10x0,75
• —
• Body dimensions — Ø26.19x12.83mm
• Contact material — brass
• Contact plating — gold-plated
• —
• Contacts configuration — SPDT
• Manufacturer — C&K
• AC contacts rating @R — 2.5A / 125V AC
• —
• —
• Leads — for soldering
• —
• Switch of type — rotary
