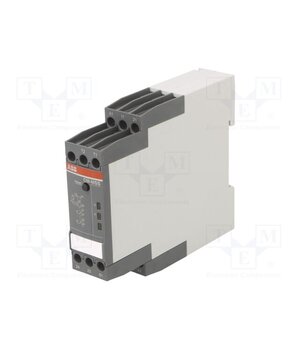

CM-MSS.22S Monitoring relay; motor temperature; 24VAC; 24VDC; CM-MSS; IN: 1

• Supply voltage — 24V
• Operating temperature — -25°C…60°C
• Supply voltage AC — 24V AC
• Supply voltage DC — 24V DC
• Manufacturer — ABB
• Controlled parameter — motor temperature
• Mounting — for DIN rail mounting
• —
• —
• Body dimensions — 22.5x85.6x103.7mm
• —
• IP rating — IP20
• —
• DC contacts rating @R — 4A / 24V DC
• —
• Number of inputs — 1
• Kind of output 1 — SPDT x2
• Kind of temperature sensor — PTC
• Additional functions — LED status indicator
• Type of automation module — monitoring relay
• Type of module — monitoring relay
• Leads — screw terminals
• —
• AC contacts rating @R — 4A / 230V AC
