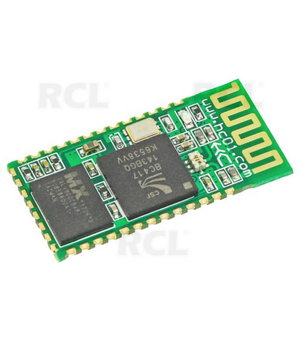

Wireless Bluetooth Module without Baseplate

Code ABRBL03/B
  • Weight 2.00g

E-shop price: 4,80

Amount: 3+
Price: 4,66
Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 3pcs.
Item location:
Central warehouse in Kaunas Item available (1)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (1)

Item description

Third, the product description
1. using CSR mainstream Bluetooth chip , Bluetooth V2.0 protocol standards
2. the serial module operating voltage of 3.3V, 10 meters from the general
3. factory default 9600 baud rate , the user can set .
4. working status indicator , connected to the non-connection status signal output, easy MCU status tracking of the modules
5. the core module size is : 28mm x 15 mm x 2.35mm
6. the working current: pairing : 30 ~ 40mA pairing has not been completed communication : 2 ~ 8Ma Communication : 8mA
7. Sleep current : no Sleep
8. for the GPS navigation system , utility meter reading systems, industrial control systems mining site .
9. with a Bluetooth laptop computer plus a Bluetooth adapter , PDA and other devices seamlessly connect

Fourth, the product application
This module is mainly used for wireless transmission of data in the field a short distance . And PC can be easily connected Bluetooth device , it can also exchange data between the two modules. Avoid cumbersome cable connections , can directly replace the serial cable .
- Bluetooth printer wireless data acquisition ;
- Bluetooth remote control toy car testing equipment;
- Remote control and monitoring
- Bluetooth wireless data transmission
- transportation , underground location, alarm
- POS system, wireless keyboard , mouse
- automated data collection systems
- wireless data transmission ; the banking system ;

Bluetooth wireless LED display system joystick, Bluetooth gamepad

smart home , industrial control ? building automation , security , wireless monitoring and control room equipment , access control systems

Features:
1. the power supply voltage 3.3V, when unpaired current of about 30mA, paired about 10mA, the absolute prohibition of reverse power !
2. led pin indicates the status of the Bluetooth connection , the output pulse represents no Bluetooth connectivity, high output indicates that Bluetooth is connected and open ports
3. interface level 3.3V, can be directly connected to various SCM (51, AVR, PIC, ARM, MSP430 , etc. ), 5V microcontroller can also be directly connected , can not pass without MAX232 MAX232!
4. modules and computer access , followed MAX3232 chip connected to the computer's serial port
5. open to the effective distance of about 10 meters , but the distance does not make this connection quality assurance
6. after the pair when full-duplex serial interface , without having to know any Bluetooth protocol , but only supports 8 data bits, 1 stop bit , no parity communication format , which is the most commonly used communication format does not support other formats .
7. when no Bluetooth connection support setting the baud rate , name , passkey via AT commands , power-down save parameter settings . After Bluetooth connection is automatically switched to transparent mode
8. small size (2.7cm * 1.3cm), factory
