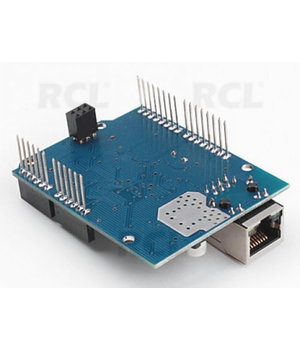

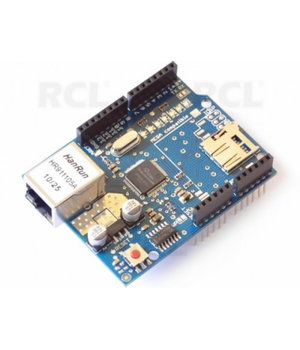

W5100 Ethernet Shield
Code ABRM05- Weight 28.00g
E-shop price: 13,80 €
| Amount: | 3+ | 6+ |
| Price: | 12,83 | 12,35 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item is not available (0) | |
Description
Operating voltage 5V (supplied from Arduino board)
Ethernet controller: W5100 with internal 16K buffer.
Supports ADSL connection (with PPPoE protocol support, PAP/CHAP authentication method).
Connection speed: 10/100Mb.
Supports serial peripheral management interface (SPI MODE 0, 3)
Internal 16Kb memory for Tx/Rx buffers.
The panel has LED indicators, each with its own function:
PWR: Indicates that the board and the accessory are powered on and supplied with power.
LINK: Indicates the presence of a network connection and flashes when the console is receiving or sending information.
FULLD: indicates when the internet connection is fully functional two-way.
100M: indicates when the Internet connection is 100 Mbps (as opposed to 10 Mbps).
RX: lights up when the add-on is receiving information.
TX: lights up when the set-top box sends information.
COLL: illuminates when a link intersection is detected.
