TOUCH SWITCH DISTANCE sensor module 30-80mm, 5-24VDC, 3A, 72W

Feature:

1. Input voltage: 5 - 24V
2. Output voltage: 5 - 24V
3. Load power: 72W
4. Load current: 3A
5. Standby current: 10mA
6. Standby power consumption: 0.1W
7. Operating temperature: -20°C \~ 65°C

Instructions for Use:

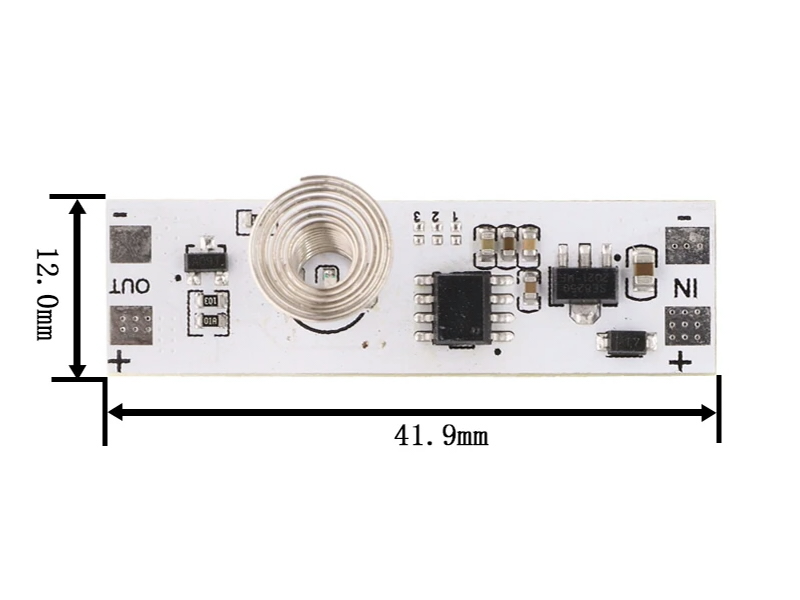

Module dimensions are 40mm x 10mm x 1.2mm, suitable for hard light strips or other lamps with width >= 10mm. Supports wide voltage operation from 9V to 24V. Note: The output voltage approximately equals the input voltage. The module features good anti-interference and self-adaptive performance, suitable for civilian-grade hard-light control. In this version, the LED status indicator remains always ON. This series is a 4-in-1 model version. Default factory setting: single-channel dimming.

Mode Description:

Touch_Sensor_S00 (General Switch)

• Fast touch toggles the light ON/OFF.
• No dimming function.
• Smooth brightness transition (gradient effect).

Touch_Sensor_S01 (Unidirectional Dimming)

• Fast touch toggles light ON/OFF.

• When ON, long touch activates unidirectional dimming:

  • Brightness increases or decreases while touching.
  • Auto stops at min/max level.
  • Release to lock brightness.
• Next ON state restores the last locked brightness.
• When OFF, long touch starts dimming from previous brightness upward.
• Gradient effect.

Touch_Sensor_S02 (Cycle Dimming)

• Fast touch toggles light ON/OFF.

• When ON, long touch activates cyclic dimming:

  • Brightness oscillates between max and min while touching.
  • Release to lock brightness.
• Next ON state restores the last locked brightness.
• When OFF, long touch starts dimming from previous brightness upward.
• Gradient effect.

Touch_Sensor_S03 (Three-Segment Dimming)

• Fast touch toggles through brightness levels:

  • 30% → 60% → 100%
• Smooth transition (gradient effect) between levels.
