Charging Control Module DC 12-24V

Code ABRM36
  • Weight 40.00g

E-shop price: 7,95

Amount: 4+ 8+
Price: 7,15 6,79
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item available (1)

Item description

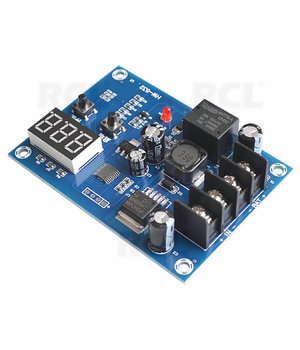

Charging Control Module XH-M603. Suitable for: 12 - 24 V batteries.
(lead-acid, nickel-cadmium, nickel-metal hydride,
lithium-ion, polymer batteries).

Features:

  • Model: XH-M603.
  • Supply voltage: 10 - 30VDC.
  • Indication accuracy: 0.1V.
  • Control voltage accuracy: 0.1V.
  • Dimensions: 82 x 58 x 18mm.

Functions:

Automatic control circuit connection.Automatic charging and switching off.Real-time voltage monitor.Auto-save setting.ST core.LM2596 switch voltage regulator.

Usage:

Set the initial voltage: in the normal state of the display voltage, press the button to display the charging voltage; after 3 seconds long press, the display will flash: then set the charging voltage value.Set the stop voltage: in the normal display voltage state, press the button to display the charging voltage; after 3 seconds of long pressing, the display will flash: then set the charging stop voltage value.Factory reset: in the power-on state, press the start/stop button at the same time. The display will show 888; this indicates factory settings.

Specification
