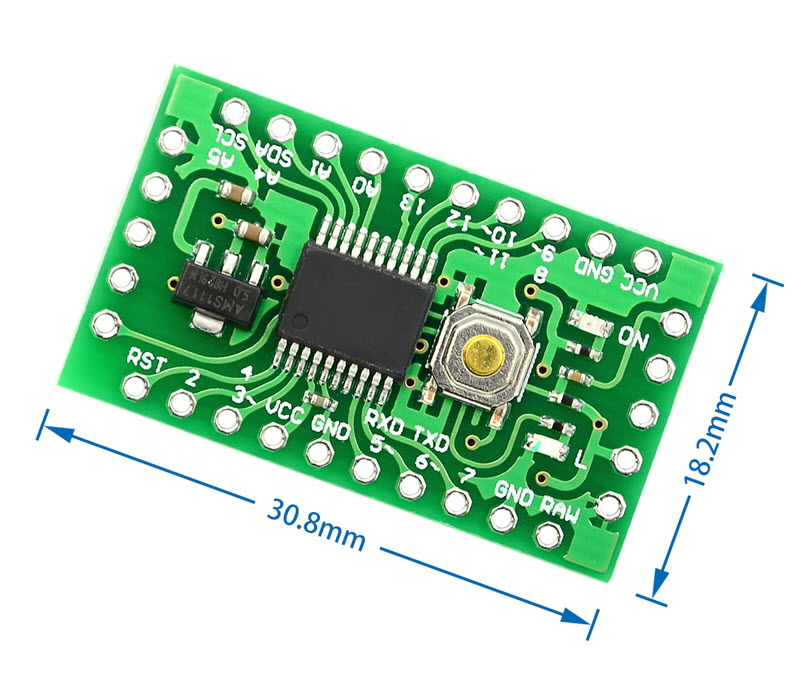

🔧 LGT8F328P-LQFP32 MiniEVB

Alternative to Arduino Pro Mini ATmega328P

The LGT8F328P-LQFP32 MiniEVB is a compact and powerful development board designed as an enhanced replacement for the Arduino Pro Mini based on the ATmega328P. It utilizes the LogicGreen LGT8F328P microcontroller, providing improved performance, enhanced analog capabilities and extended functionality while maintaining Arduino compatibility.

Ideal for hobbyists, students, engineers and embedded system developers.

✨ Key Features

✅ Fully compatible with Arduino IDE

✅ Compatible with most Arduino Pro Mini projects

✅ Up to 32 MHz clock speed

✅ 12-bit ADC resolution (4096 levels)

✅ Integrated DAC output

✅ Low power consumption

✅ Operating voltage from 3.3V

✅ High-current outputs up to 80 mA

---

⚙ Technical Specifications

Parameter	Value
Microcontroller	LGT8F328P
Package	LQFP32
Architecture	AVR-compatible
Development Environment	Arduino IDE
Flash Memory	32 KB
SRAM	2 KB
EEPROM	1 KB
Maximum Clock Frequency	32 MHz
ADC Resolution	12-bit
DAC	1 channel
Operating Voltage	3.3V
Logic Levels	3.3 V
Digital I/O	14
Analog Inputs	8
PWM Outputs	6
UART	Yes
SPI	Yes
I²C	Yes

---

📊 Advantages over ATmega328P

Feature	LGT8F328P	ATmega328P
Maximum Clock	32 MHz	16 MHz
ADC	12-bit	10-bit
DAC	Yes	No
Operating Voltage	3.3V
High Current Outputs	Up to 80 mA	Up to 20 mA

---

🏭 Applications

• IoT devices
• Home automation
• Sensor systems
• Data logging
• Measurement instruments
• Robotics
• LED control
• Educational projects
• Embedded systems

---

💡 Note

With its 32 MHz clock speed, integrated DAC and 12-bit ADC, the LGT8F328P MiniEVB offers significantly greater capabilities than a standard Arduino Pro Mini while remaining highly compatible with the Arduino ecosystem.
