Digital Thermostat W3230, -55°C~120°C, 230VAC
Code ABTT012/3- Weight 50.00g
E-shop price: 9,95 €
| Amount: | 3+ | 5+ |
| Price: | 8,86 | 6,54 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (4) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
The W3230 digital thermostat with wired temperature sensor is the solution wherever you need to control the air temperature, such as in saunas or at home. The thermostat has red and blue LED indications showing set and current temperature. The wide measuring range of -50°C to 120°C is a great advantage.
Technical data and features:
Built-in waterproof sensor NTC 10 K with cable
Sensor cable length: ~100 cm
Output: relay - schematic diagram on the housing
Temperature measurement range: -50°C to 120°C
Measurement error: ± 0.1°C
Power supply: 110-220V
Controlled voltage and current: 10A 250 V AC / 12 V DC - 20A

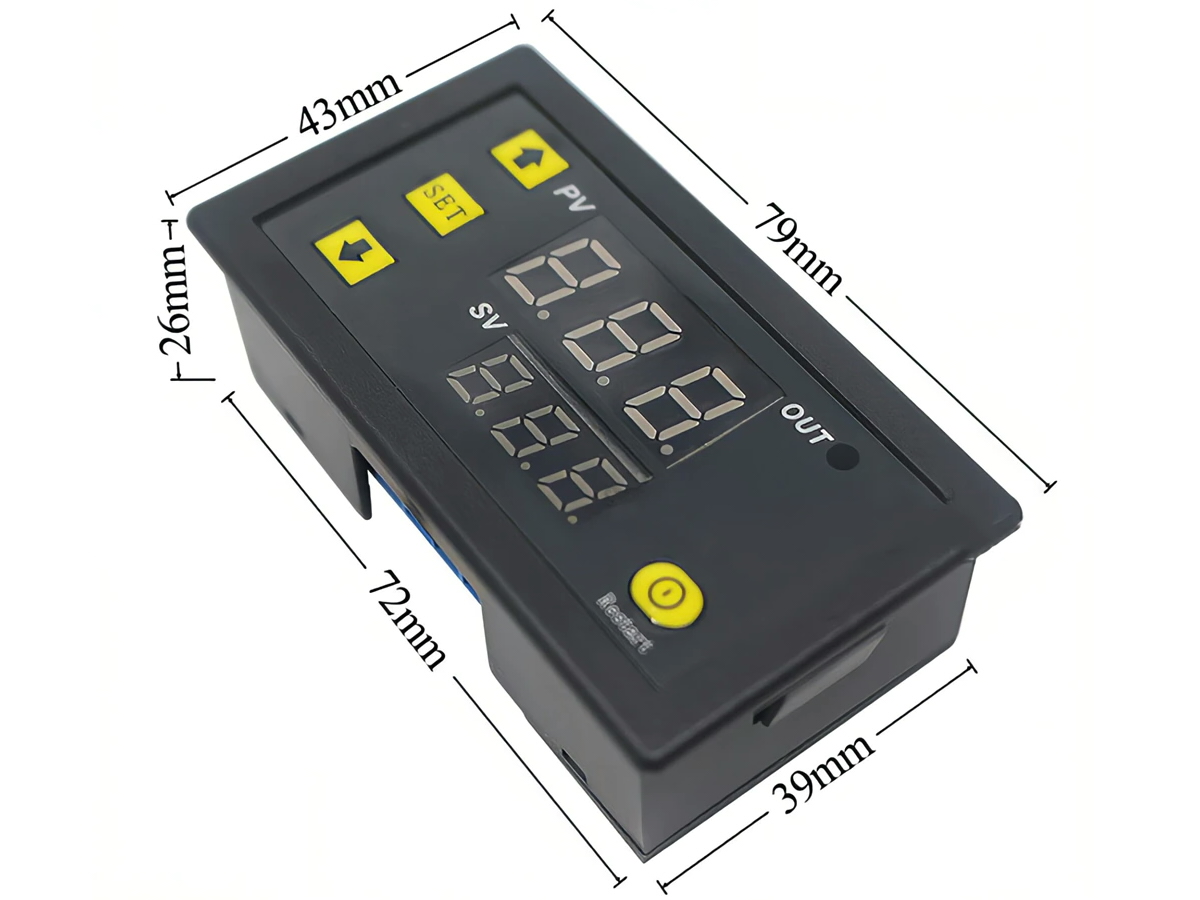

Overall dimensions: 79x43x26mm
Control:
MENU - to access the programming system, hold the SET button for approximately 4-5 seconds. Programming mode selection P0 - P6, selected by the + and - buttons Entry into the selected mode is confirmed by pressing the SET button to confirm the selected value.
Programming modes P0 - P6
P0 - selection of C/H cooling or heating
P1 - hysteresis response range, selection from 0.5 to 15°C
P2 - upper temperature limit (default 120C) range from -45°C to 120°C
P3 - lower temperature limit (default -55C) range from -55°C to 120°C
P4 - calibration of the thermometer in the range from -7°C to 7°C (settable, in case of incorrect temperature readings)
P5 - relay activation time from 0 to 10 min
P6 - over-temperature alarm, adjustable from 0 to 110°C at the same time activation of the + and - buttons at the time of supply voltage activation restores the factory setting
