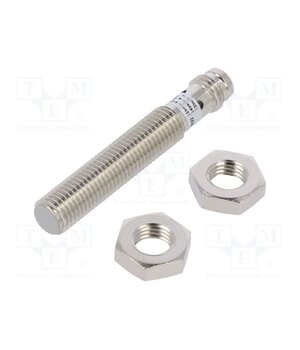

AE1AP3F Sensor: inductive; OUT: PNP / NO; 0÷2mm; 10÷30VDC; M8; IP67; 200mA

• Number of pins — 3
• Supply voltage — 10V…30V
• Operating temperature — -25°C…70°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Overall length — 50mm
• Switching frequency max — 5kHz
• Connection — M8 male
• IP rating — IP67
• Body material — brass
• —
• Type of sensor — inductive
• —
• Manufacturer — Micro Detectors
• —
• —
• Range — 0...2mm
• —
• Range — 0...2mm
• —
• Output configuration — PNP / NO
• Plating material — nickel
• Switch housing — M8
• —
