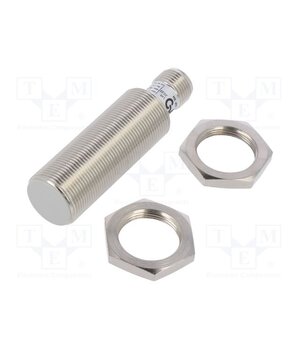

AK1AP3H Sensor: inductive; OUT: PNP / NO; 0÷8mm; 10÷30VDC; M18; IP67; 400mA

• Number of pins — 4
• Operating temperature — -25°C…70°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Overall length — 64mm
• Switching frequency max — 300Hz
• —
• Switch housing — M18
• IP rating — IP67
• Connection — M12 male
• Body material — brass
• Type of sensor — inductive
• —
• Manufacturer — Micro Detectors
• Range — 0...8mm
• —
• —
• —
• —
• Output configuration — PNP / NO
• Plating material — nickel
• —
